UPS Products
Medical-Grade Uninterruptible Power Supply (UPS) providing Battery Backup, Line Conditioning & Surge Suppression for Mission Critical Applications
Accratech is the leading provider of reliable and efficient medical-grade uninterruptible power supply (UPS) solutions for healthcare facilities and other mission critical equipment and machinery. Our UPS systems are engineered to provide seamless power backup, safeguarding sensitive electronic equipment from power surges, fluctuations, and outages. With our medical-grade UPS solutions, you can be confident knowing that your critical equipment is always protected.
Overview & Key Features
- Patient Safety: Enhanced by ultra-low leakage current (typically less than 100 microamps), making it ideal for “near patient or staff” applications.
- No-Break Transfers: Ensures continuous power supply without interruption during transitions.
- High Surge Capability: Protects connected equipment from power surges.
- Multiple Voltage Outputs: Provides versatility for various medical devices.
- Load Compatibility: Designed to be compatible with all modern loads, especially today’s power-factor-corrected equipment.
- Robust Design: Built for durability and reliability for mission critical settings.
- 96% efficiency and advanced control features.
- Unity Power Factor: No oversizing of UPS is required.
- Internal Diagnostics: Equipped with 18 internal diagnostic routines for system monitoring.
- Control System: Realtime multi-tasking microprocessor control for superior system performance.
- No End of Life: There are Linear/1 UPS units that have been in operation for 20 years or more.

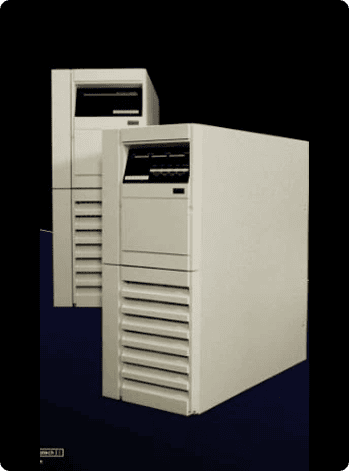

Linear/1 UPS Product Range
The Linear/1 family of Uninterruptible Power Supply (UPS) solutions includes various models and configurations to suit different needs:
| Model | Capacity (kW) | Dimensions (inches) | Weight (lbs.)* | Typical Runtime (Full Load) ** |
|---|---|---|---|---|
| U91-1.5k | 1.5kW | 5.25” x 17.75” x 24” (Rackmount) | 80 | 6 minutes |
| U91-3k | 3kW | 29” x 10.5” x 25.75” | 280 | 13 minutes |
| U91-4k | 4kW | 29” x 10.5” x 25.75” | 280 | 9 minutes |
| U91-5k | 5kW | 29” x 10.5” x 25.75” | 295 | 6.5 minutes |
| U91-8k | 8kW | 32 x 13 x 33” | 490 | 11 minutes |
*Wheel mounted for ease of handling
**Extended runtime capacity with additional battery cabinets available
To find the right unit based on your watt load requirement:
- Capacity Calculation: Volts x Amps = Watt Load Required
Compliance and Certifications
The Linear/1 UPS complies with universal safety and EMC standards:
- Medical Safety: UL-60601-1, cUL, CAN/CSA C22.2 NO. 601.1-M90
- EMC Compliance: FCC part 15: Class A & B, VFG 243/1991, VFG 46/1992, CISPR 22
- Other Standards: UL 1778, CAN/CSA C22.2 No. 107.1-M91
Configurable Options / Customization
- KW Configurations: 3KW, 4KW, 5KW, and 8KW models
- Receptacle Options: 1 to 4 plug-and-play panels with multiple receptacles in each (Both US & International adaptability for plugs and receptacles)
- Extended Runtime Capacity: These units can be complemented with battery cabinets for extended runtime.
- Output Capacity: 100, 110, 115, 120, 200, 208, 220, 230 or 240V
Other Specifications:
- Input Capacity: 200-240V
- Software: The LinCS Software Suite is a comprehensive collection of power management shutdown software for use with linear/1 uninterruptible power systems. The software furnishes a complete record of critical power events and UPS activity on an event log, helping you spot, diagnose and react more effectively to problems. Online manuals include easy-to-follow installation and operating instructions.
System Superiority
- Fault tolerant
- Realtime multi-tasking microprocessor control
- Worldwide voltage and frequency compatibility
- Lowest operating cost in its power range
- 40 decibels at one-meter audible noise (5 times softer than other offerings)
- Easy installation
- Auto-Sensing Input Voltage Setting
Real Solutions for Real Problems
Electric power problems are real and troublesome, especially in environments where uninterrupted, clean power is critical, such as hospitals, healthcare facilities, and other mission critical applications. Inadequate or unreliable power can have severe consequences and include the following situations:
- Power Failure
- Power Sag
- Power Surge
- Under Voltage
- Over Voltage
- Electric Line Noise
- Frequency Variation
- Switching Transients
- Harmonic Distortions
Our medical-grade UPS not only delivers an uninterruptible power supply but also provides robust power protection against voltage fluctuations, power surges, and outages. With its advanced features and built-in battery backup capability, a medical-grade UPS ensures that medical devices, surgical equipment, and other critical mission equipment remain operational during power disruptions.
BROCHURES
- Linear/1 UPS page 1 specifications (PDF, 202KB)
- Linear/1 UPS page 2 specifications (PDF, 332KB)
- Linear/1 UPS page 3 internal features (PDF, 78KB)
- Linear/1 UPS page 4 customization options (PDF, 64KB)
